104 damper for toilet seat cover

slow close damper of smart toilet seat cover

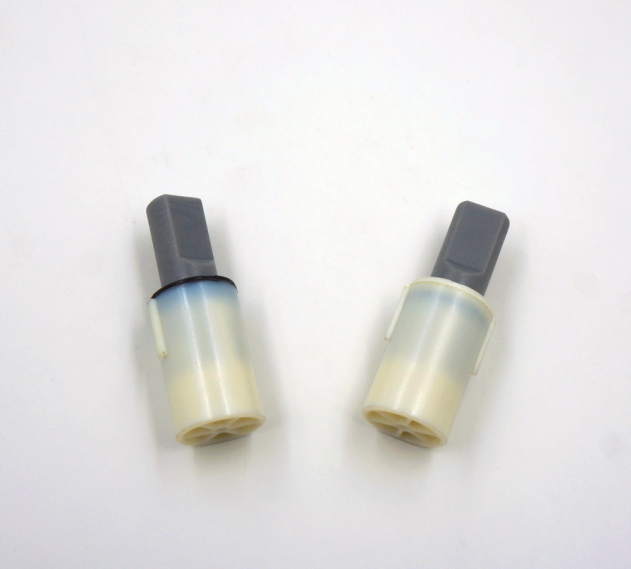

1.Product picture:

2.Product Intro:

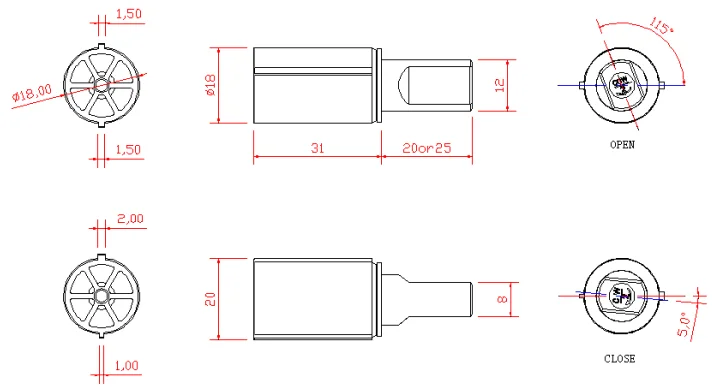

3.Product Drawing:

4.Detailed Parameters:

1.Product material	(1).body	PBT
	(2).cap	PBT
	(3).shaft	POM
	(4).vane	POM
2.Product patent No.	ZL201220027709.7 ,  201210019135.3
3.Damping oil	dimethyl silicone oil
4.Weight	25±2 g/set
5.Direction	clockwise,  counter-clockwise
6.durability test Test method:opening in 1″, free-falling when closing Test speed:5 cycles/minute Temperature:23℃±2℃ Test torque:2N/m
7.force durability test Test method:opening in 1″,closing in 1″ Angle:100°→0° Test speed:30 cycles/minute Temperature:23℃±2℃ Test torque:2N/m
8.temperature VS. closing time test temperature characteristic: under the condition of the temperature in 23℃, time in 12″, torque in 2N/M, the test results obtained as follows: when the temperature drops, time increases; when the temperature rises, time reduces;

Temperature Characteristics:

Resistance of the damper will change according to the ambient temperature.

The temperature could affect the sealing damping oil fluidity.

If the temperature is higher, the fluidity will be higher,

and the resistance is lower, the fluidity will be lower.

The suitable temperature range is -30° C to 80° C

5.packaging&shipping

Packing:Cartons,standard export packaging.For details,depending on your demands.

Shipping: our products are mainly sent by sea or air from Shanghai or Ningbo Port.
