SS035 expension nut

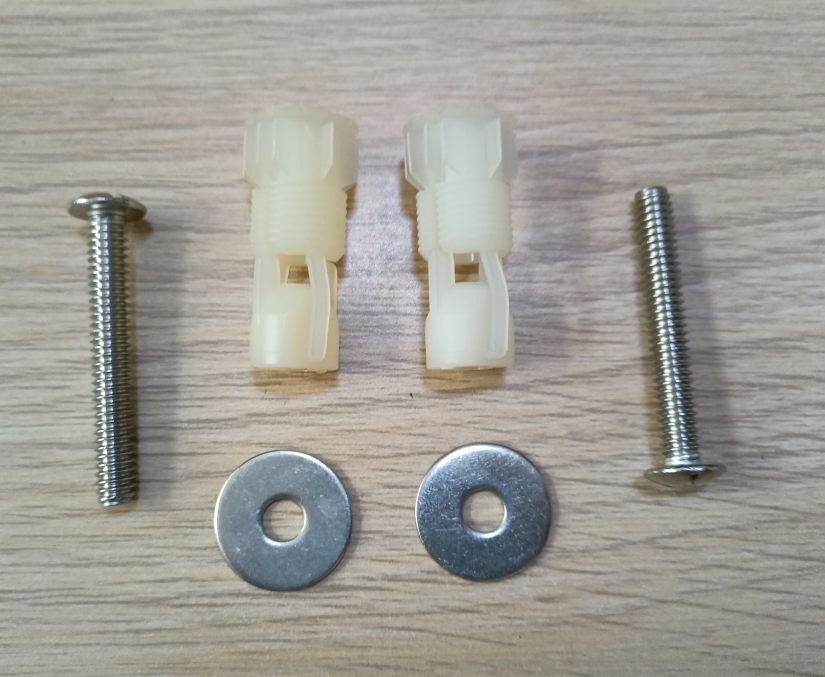

1.Product picture:
2.Product Intro:
|
1.Torsion |
0-3N/M ,adjust according to your demand |
|
2.Service life |
More than 50,000 times |
|
3.Biggest action angle |
115°→ -5° |
|
4.Soft closing performance |
115°→70° fast speed , 70°→30° medium speed , 30°→0° slow speed; fast followed by slow, Smooth falling and noiseless |
|
5.Maximum operating frequency |
30 cycles/minute |
3.Product Drawing:
4.Detailed Parameters:
|
1.Product material
|
(1).body | PBT |
|
|
||
| (2).shaft | POM | |
| (3).vane | POM | |
| 2.Product patent No. | ZL201220027709.7 , 201210019135.3 | |
| 3.Damping oil | dimethyl silicone oil | |
| 4.Weight | 28±2 g/set | |
| 5.Direction | clockwise, counter-clockwise | |
|
6.durability test Test method:opening in 1″, free-falling when closing Angle:100°→0° Test speed:5 cycles/minute Temperature:23℃±2℃ Test torque:2N/m |
|
|
|
7.force durability test Test method:opening in 1″,closing in 1″ Angle:100°→0° Test speed:30 cycles/minute Temperature:23℃±2℃ Test torque:2N/m |
|
|
|
8.temperature VS. closing time test
temperature characteristic: under the condition of the temperature in 23℃, time in 12″, torque in 2N/M, the test results obtained as follows: when the temperature drops, time increases; when the temperature rises, time reduces;
|
|
|
Temperature Characteristics:
Resistance of the damper will change according to the ambient temperature.
The temperature could affect the sealing damping oil fluidity.
If the temperature is higher, the fluidity will be higher,
and the resistance is lower, the fluidity will be lower.
The suitable temperature range is -30° C to 80° C
