102 damper

soft closing rotary damper for smart toilet seat cover

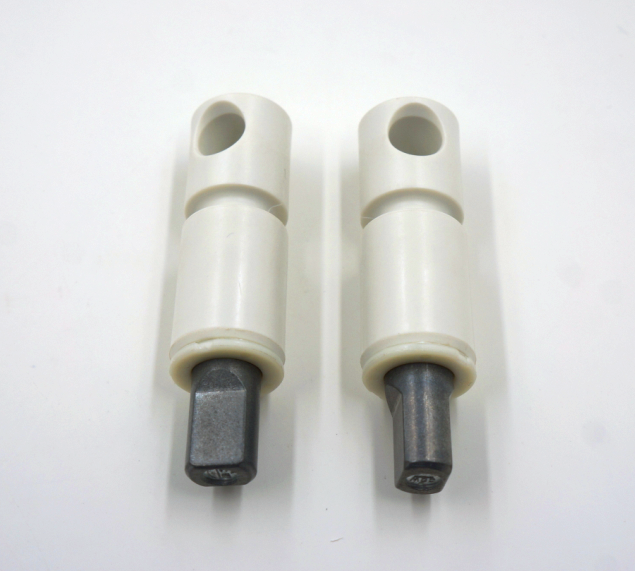

1.Product picture:

2.Product Intro:

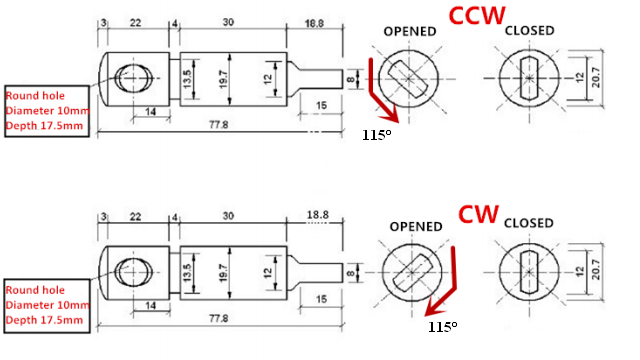

3.Product Drawing:

4.Detailed Parameters:

1.Product material	(1).body	PBT
	(2).cap	PBT
	(3).shaft	POM
	(4).vane	POM
2.Product patent No.	ZL201220027709.7 ,  201210019135.3
3.Damping oil	dimethyl silicone oil
4.Weight	47±2g/set
5.Direction	clockwise,  counter-clockwise
6.durability test Test method:opening up in 1″, free-falling when closing Test speed:5 cycles/minute Temperature:23℃±2℃ Test torsion:2N/m
7.force durability test Test method:opening up in 1″,closing in 1″ Test Angle:100°→0° Test speed:30 cycles/minute test temperature:23℃±2℃ Test torsion:2N/m
8.temperature VS. closing time test temperature characteristic: under the condition of the temperature in 23℃, time in 12″, torque in 2N/M, the test results obtained as follows: when the temperature drops, time increases; when the temperature rises, time reduces;

Temperature Characteristics:

Resistance of the damper will change according to the ambient temperature.

The temperature could affect the sealing damping oil fluidity.

If the temperature is higher, the fluidity will be higher,

and the resistance is lower, the fluidity will be lower.

The suitable temperature range is -30° C to 80° C

5.packaging&shipping

Packing:Cartons,standard export packaging.For details,depending on your demands.

Shipping: our products are mainly sent by sea or air from Shanghai or Ningbo Port.

6.Our Services:

1.We are a professional manufacturer, and our products have been accepted by internationally well-known enterprises.

2.Every product we provide must pass a strict test.

3.Every production line is strictly controlled.

4.Over the years we have adhered to the "quality first, credit first, customer first, integrity-based" operating principles of market development.
